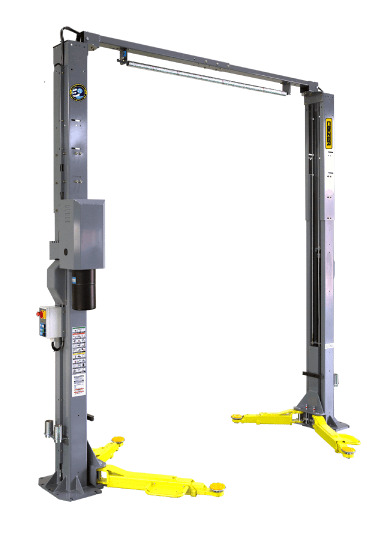

caizer t53+ 5.0t 2 post clear floor hoist
FEATURES
5300kg Clear FloorNon-leakage fully sealed cylinders with German performance seals.Wire rope synchronisation.Electric safety lock release with optional sensors.Overall height adjustable (3 settings).Overall width adjustable (2 settings).Standard foot protection guard with tool-tray.Dual upper limit switches on post and cross member.Telescopic lift pads with standard 100mm pad extensions.Top quality Korean hydraulic unit with Italian 3kw fast spin motor.
SPECIFICATIONS

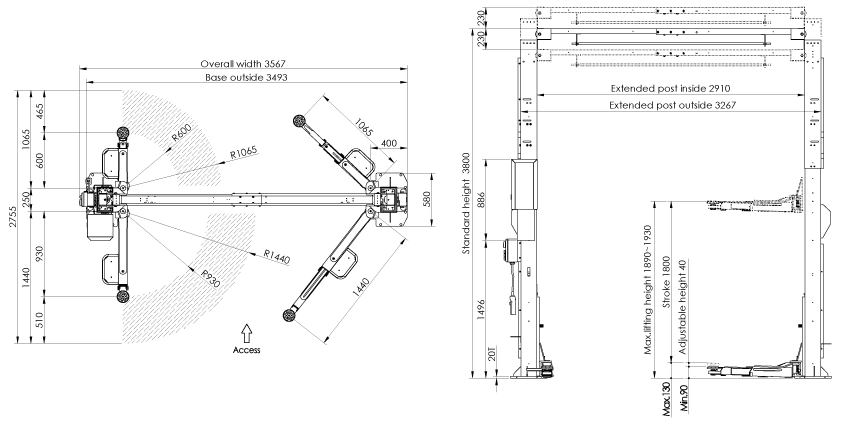

Model : Caizer T53+Lifting Capacity : 5,300 KgMax. Lifting Height : 1,890. (2,030mm with 100mm adaptor)Overall height: 3800mmOverall width: 3567mmWidth between columns; 2767mmPower supply: 3ph/415VNet Weight : About 950 Kg

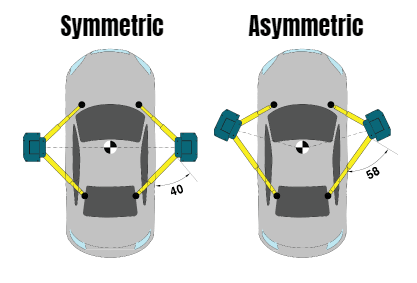

CAN BE INSTALLED ASYMETRICALLY IF REQUIRED
