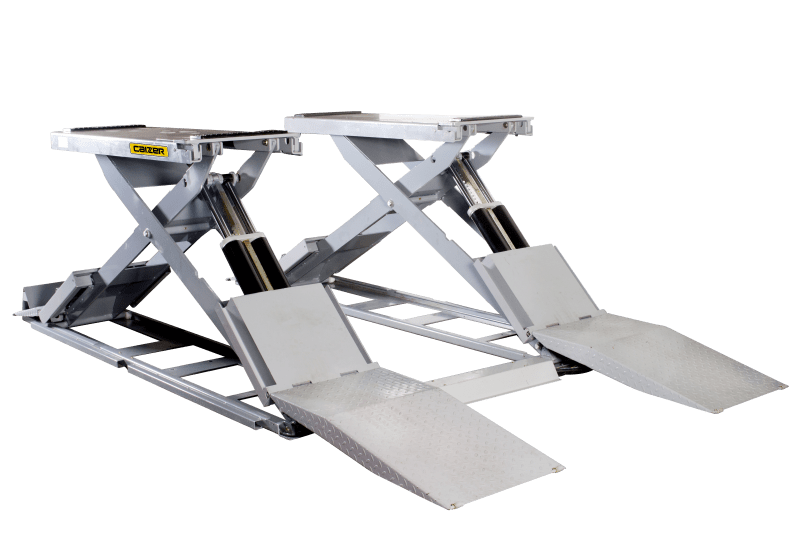

caizer x33 3.3t full rise scissor lift
FEATURES
Powerful quad hydraulic cylindersLow profile designAbove ground and in-ground install optionsFull rise scissor liftNo cross rails or torsion bars between lifting platform Space-saving when the lift is fully raised.Completely free floor space when the lift is fully lowered.
SPECIFICATIONS

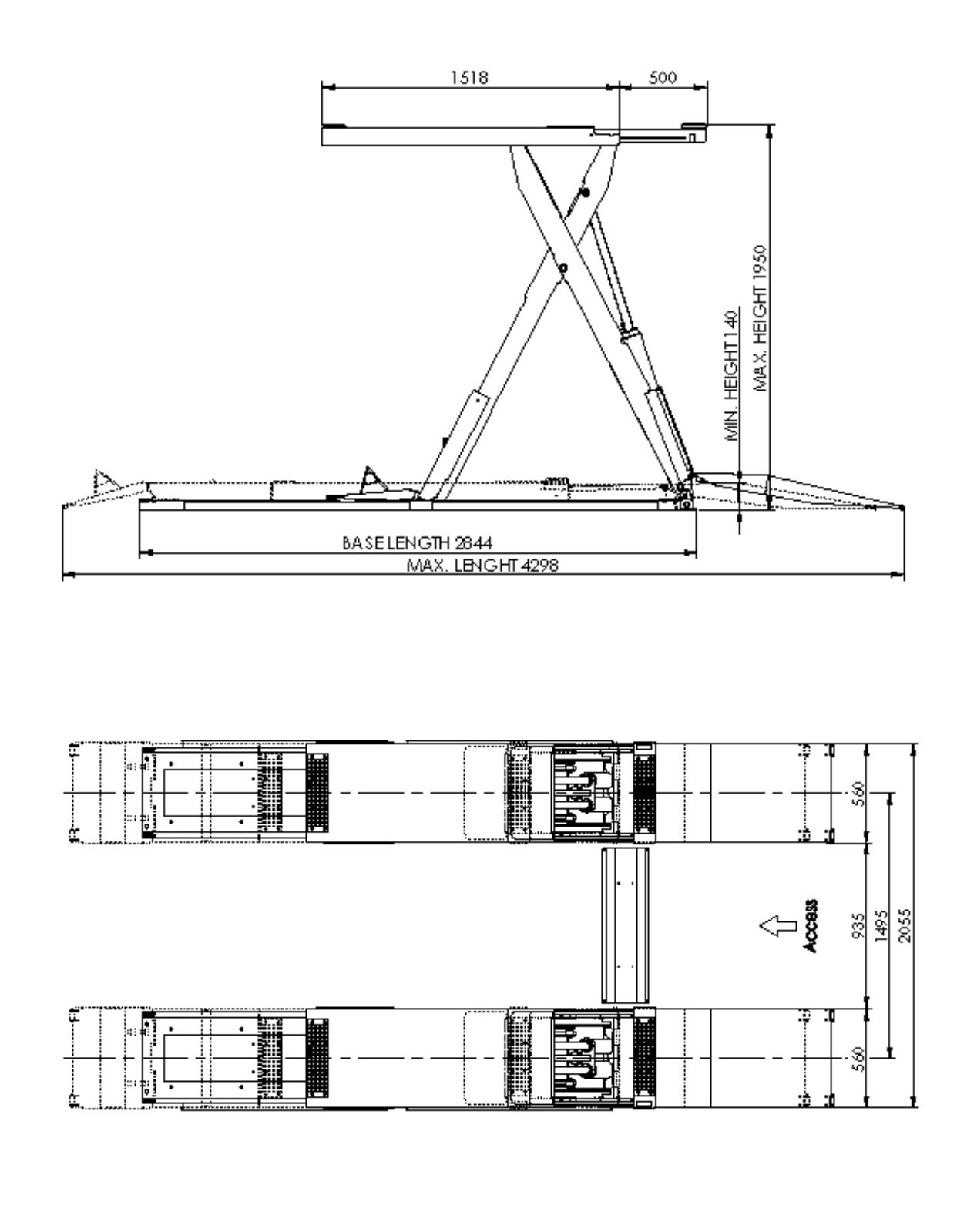

Model : Caizer X33+Lifting Capacity : 3,300 KgDimension : 4,259(L) x 140(H) x 2,055(W) mmMax. Lifting Height : 1,953mm (Inground)1803mmMin.Lifting Height : 140mmLifting Time : Approx 55secLowering Time : Approx. 50secPower Supply & Motor : 1PH : 2.5HP x 4P x 220V x 60Hz 3PH : 2HP x 4P x 220,380V x 60HzOperating Method : Control boxNet Weight : About 1,050 Kg
