GS Series air compressor

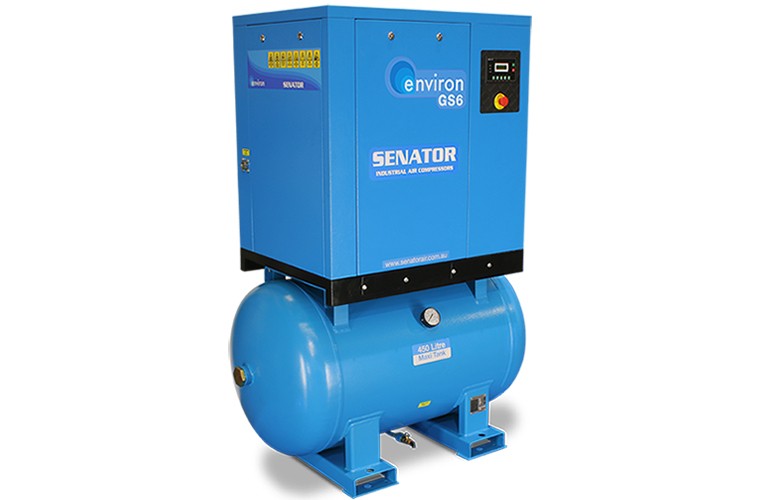

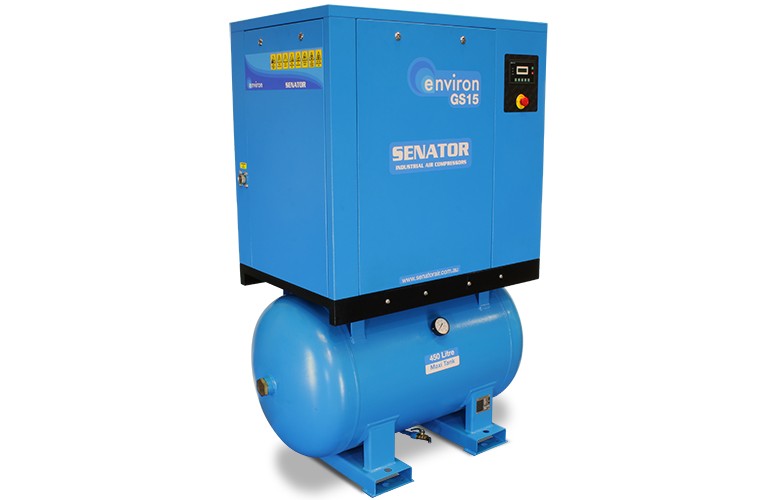

The new Senator GS series comprises five models of rotary screw air compressor sets that are fully integrated, tank-mounted units supplied ready for use. Their innovative design features an oversized 450 litre air tank in a compact package whose footprint is up to 30% smaller than traditional layouts.
GS4
GS6
GS8
GS11
GS15
Motor Power: 4 kW (5.5 hp)Free Air Delivery: 0.60 m³/min (21 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 62 dB(A)Air End Speed: 1,961 rpmAir Outlet: 3/4 inch BSP
Motor Power: 5.5 kW (7.5 hp)Free Air Delivery: 0.82 m³/min (29 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 67 dB(A)Air End Speed: 2,755 rpmAir Outlet: 3/4 inch BSP
Motor Power: 7.5 kW (10 hp)Free Air Delivery: 1.10 m³/min (39 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 68 dB(A)Air End Speed: 3,434 rpmAir Outlet: 3/4 inch BSP
Motor Power: 11 kW (15 hp)Free Air Delivery: 1.78 m³/min (63 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 70 dB(A)Air End Speed: 2,744 rpmAir Outlet: 1 inch BSP
Motor Power: 15 kW (20 hp)Free Air Delivery: 2.45 m³/min (87 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 72 dB(A)Air End Speed: 3,763 rpmAir Outlet: 1 inch BSP
GSV Series air compressor
GSV-B series air compressor

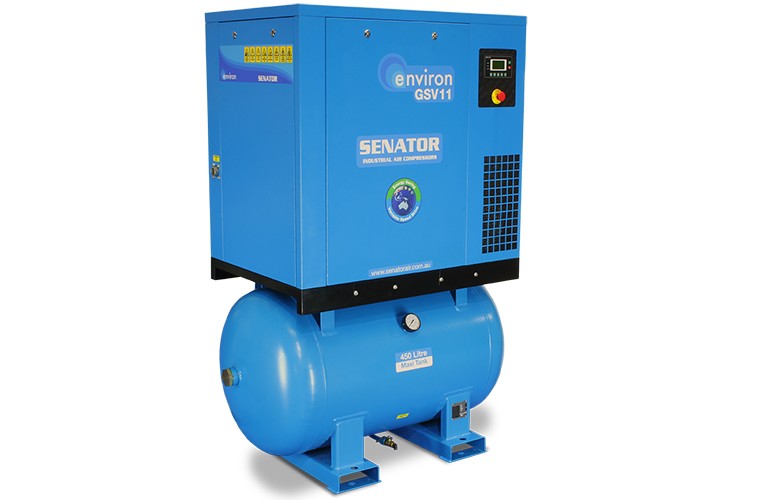

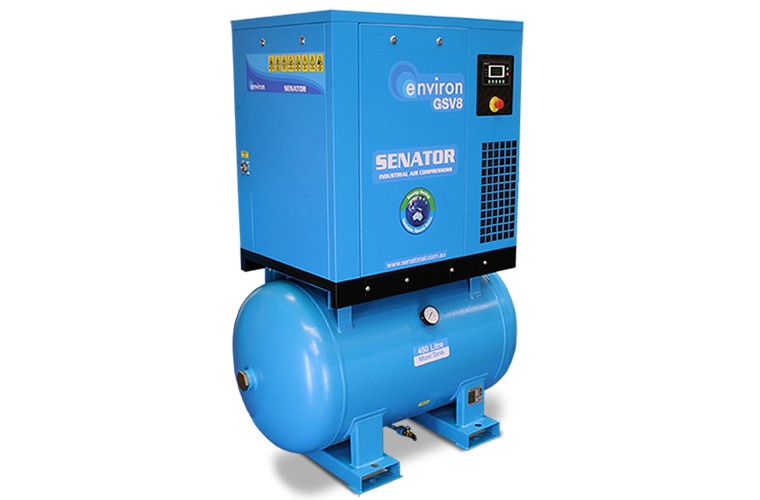

Combining proven energy-efficient variable speed drive technology with an oversized 450 litre air tank in a compact space-saving layout. The new Senator GSV rotary air compressor sets are ideally configured for small-to-medium industrial applications that have fluctuating compressed air demands.

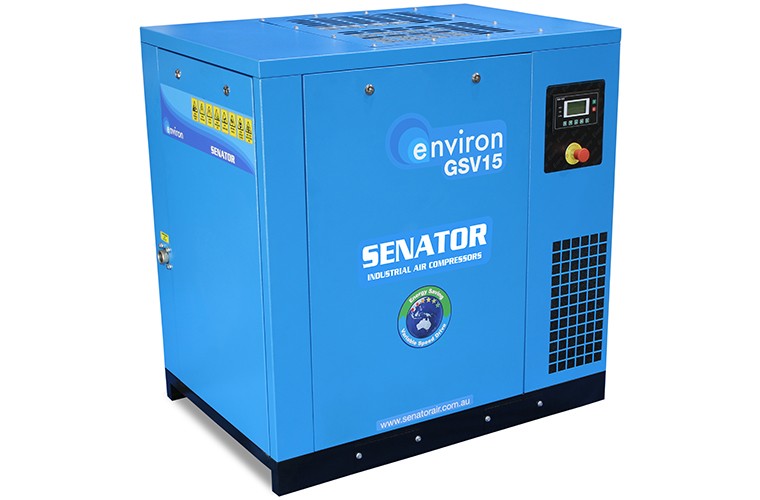

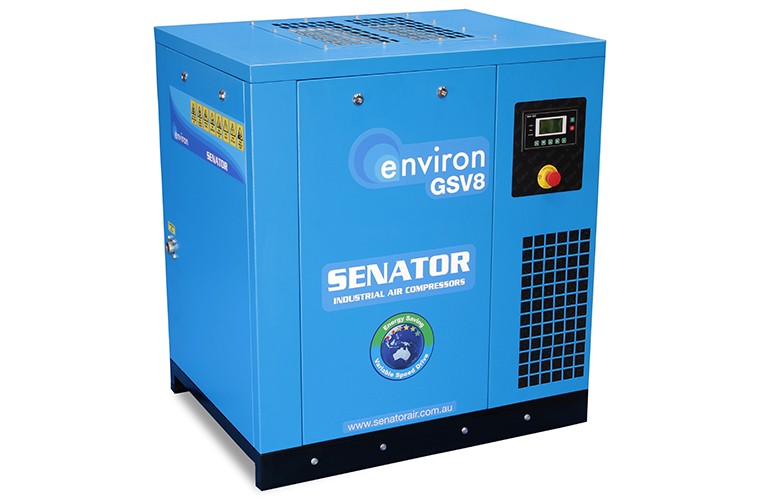

The new Senator GSV-B base-mounted rotary air compressor sets feature an ultra-compact design layout ideal for installations where access or space is limited. Their well-proven variable speed drive technology saves energy by adjusting the compressor’s output to match fluctuating air demand.
GSV8
GSV11
GSV15
GSV8-B
GSV11-B
GSV15-B
Motor Power: 7.5 kW (10 hp)Free Air Delivery: 0.44-1.10 m³/min (16-39 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 69 dB(A)Air End Speed: 1,374 - 3,434 rpmAir Outlet: 3/4 inch BSP
Motor Power: 11 kW (15 hp)Free Air Delivery: 0.71-1.78 m³/min (25-63 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 71 dB(A)Air End Speed: 1,098 - 2,744 rpmAir Outlet: 1 inch BSP
Motor Power: 15 kW (20 hp)Free Air Delivery: 0.98-2.45 m³/min (35-87 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Tank Volume: 450 LitresNoise Level @ 1m: 73 dB(A)Air End Speed: 1,505 - 3,763 rpmAir Outlet: 1 inch BSP
Motor Power: 7.5 kW (10 hp)Free Air Delivery: 0.44-1.10 m³/min (16-39 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 69 dB(A)Air End Speed: 1,374 - 3,434 rpmWeight: 283 kgAir Outlet: 3/4 inch BSP
Motor Power: 11 kW (15 hp)Free Air Delivery: 0.71-1.78 m³/min (25-63 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 1,098 - 2,744 rpmWeight: 391 kgAir Outlet: 1 inch BSP
Motor Power: 15 kW (20 hp)Free Air Delivery: 0.98-2.45 m³/min (35-87 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 73 dB(A)Air End Speed: 1,505 - 3,763 rpmWeight: 415 kgAir Outlet: 1 inch BSP
