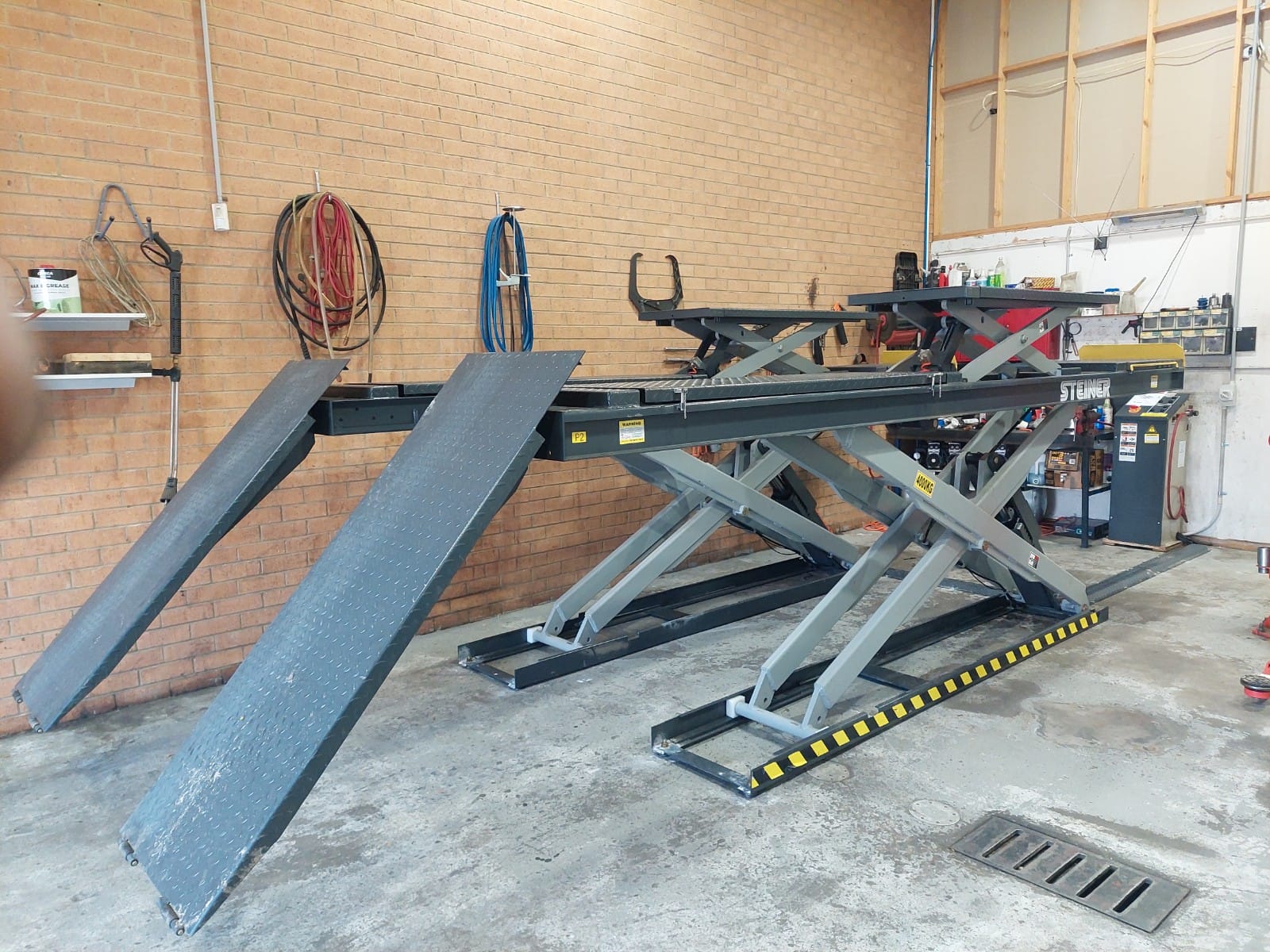

lt40dsa
4.0 Tonne Double Scissor Alignment Hoist
Synchronization cylinder system equipped with hose burst valves24V control system with photocell deviceSafety stop device at 300mm height, both control buttons are needed to lower the lift from 300mm to ground.Skid proof diamond runways and adjustable turnplate blocksSelf-lubricating UHMW polyethene sliders and bronze bushes.Optional 2.8 Tonne Rolling JackMade to European, Australian & NZ Design Standards, Approved & Certified
SPECIFICATIONSMain hoist lifting capacity: 4000kgLifting height: 1870mmMinimum height: 280mmRunway length: 4800mmOverall length (Inc. Ramps): 6336mmRunway width: 625mmLifting time: 55SOver width: 2190mmSecondary scissor lifting capacity: 4000kgSecondary scissor lifting height: 420mmSecondary scissor length: 1600-1934mmMotor: 4.0HP.
SPECIFICATIONSMain hoist lifting capacity: 4000kgLifting height: 1870mmMinimum height: 280mmRunway length: 4800mmOverall length (Inc. Ramps): 6336mmRunway width: 625mmLifting time: 55SOver width: 2190mmSecondary scissor lifting capacity: 4000kgSecondary scissor lifting height: 420mmSecondary scissor length: 1600-1934mmMotor: 4.0HP.
LT55dsa
5.5 Tonne Double Scissor Alignment Hoist
Synchronization cylinder system equipped with hose burst valves.24V control system with photocell device.Safety stop device at height of 300mm. For added safety both control buttons are needed to lower the lift from 300mm to ground.Skid proof diamond runways and adjustable turnplate blocks.Self-lubricating UHMW polyethylene sliders and bronze bushes.
Optional 2.8 Tonne Rolling JackMade to European, Australian & NZ Design Standards, Approved & Certified
SPECIFICATIONSLifting Capacity: 5500kgLifting Time: 55SLifting Height: 1870mmMinimum Height: 320mmRunway Length: 4991mmOverall Width: 2190mmWidth Between Runways: 940mmOverall Length(Inc. Ramps): 6527mmMin. Four Wheel Align: 2180mmMax. Four Wheel Align: 4230mmMax. Two Wheel Align: 4390mmLifting Capacity Of Sub Lift: 4000kgLifting Height of Sub Lift: 420mmRunway Length of Sub Lift: 1600~1880mmMotor 4.0HP
CONTACT US FOR FINANCE OPTIONS
SPECIFICATIONSLifting Capacity: 5500kgLifting Time: 55SLifting Height: 1870mmMinimum Height: 320mmRunway Length: 4991mmOverall Width: 2190mmWidth Between Runways: 940mmOverall Length(Inc. Ramps): 6527mmMin. Four Wheel Align: 2180mmMax. Four Wheel Align: 4230mmMax. Two Wheel Align: 4390mmLifting Capacity Of Sub Lift: 4000kgLifting Height of Sub Lift: 420mmRunway Length of Sub Lift: 1600~1880mmMotor 4.0HP
