Features

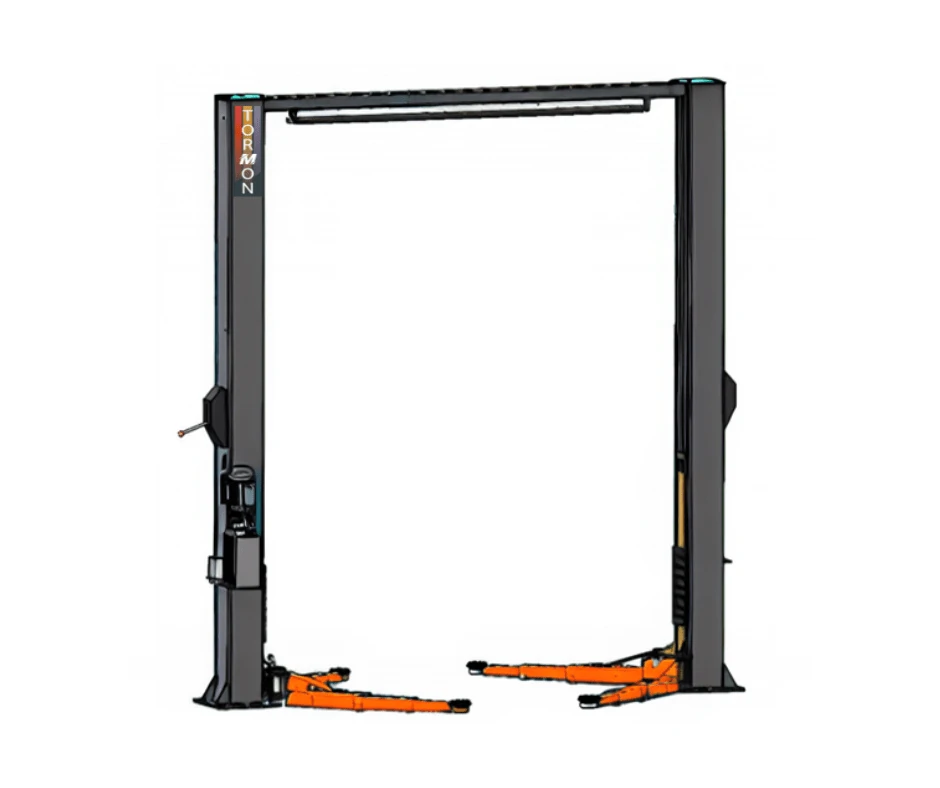

Attractive, streamlined design

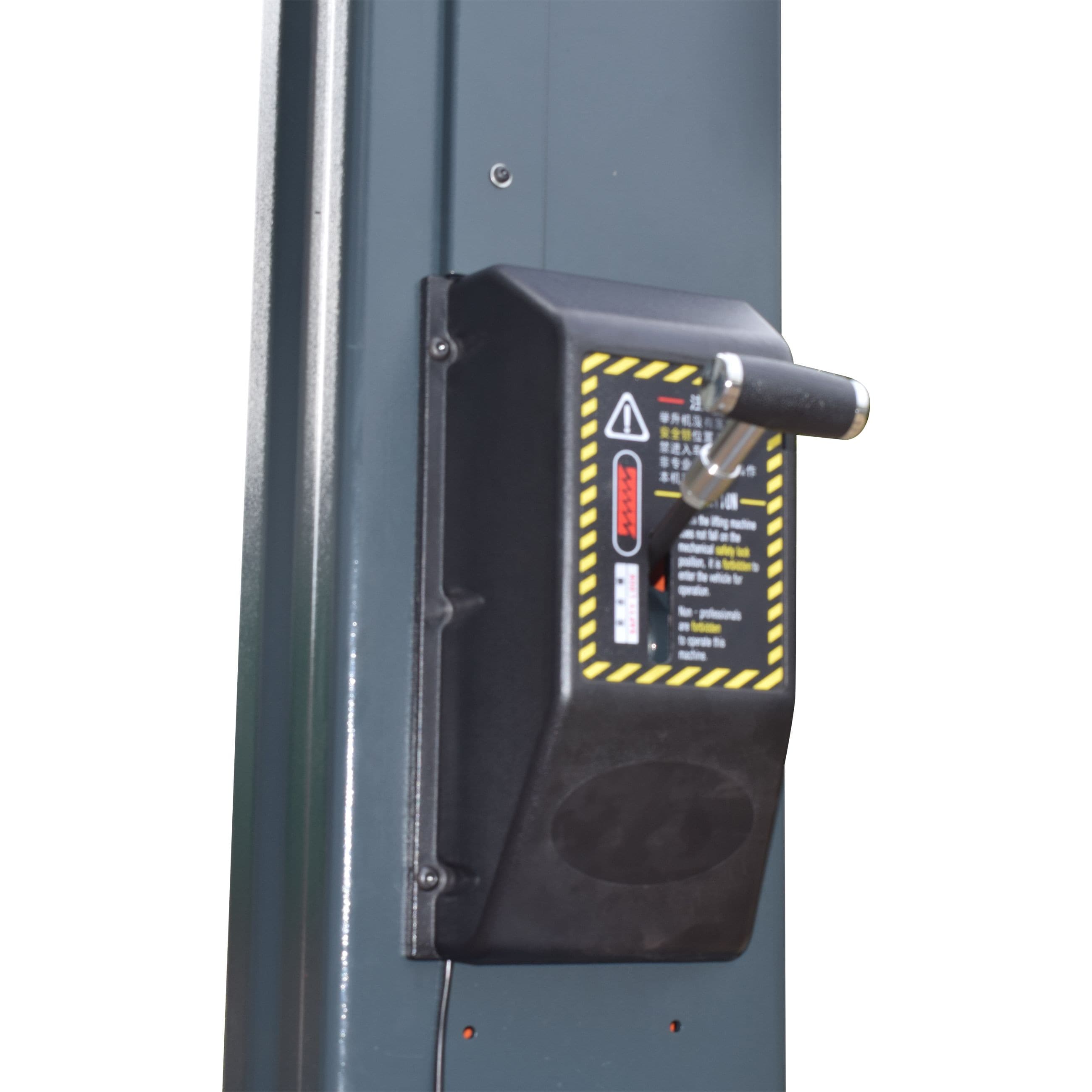

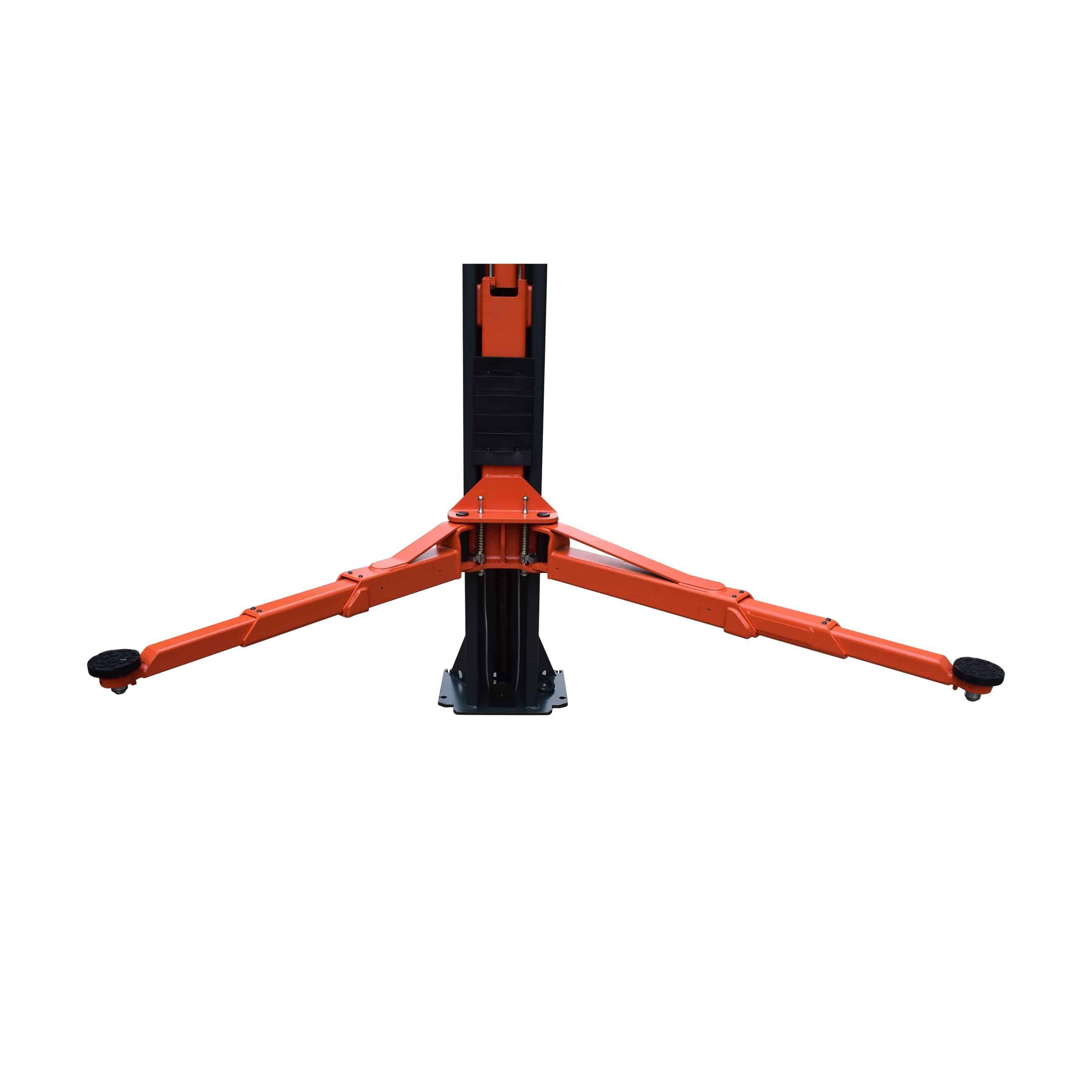

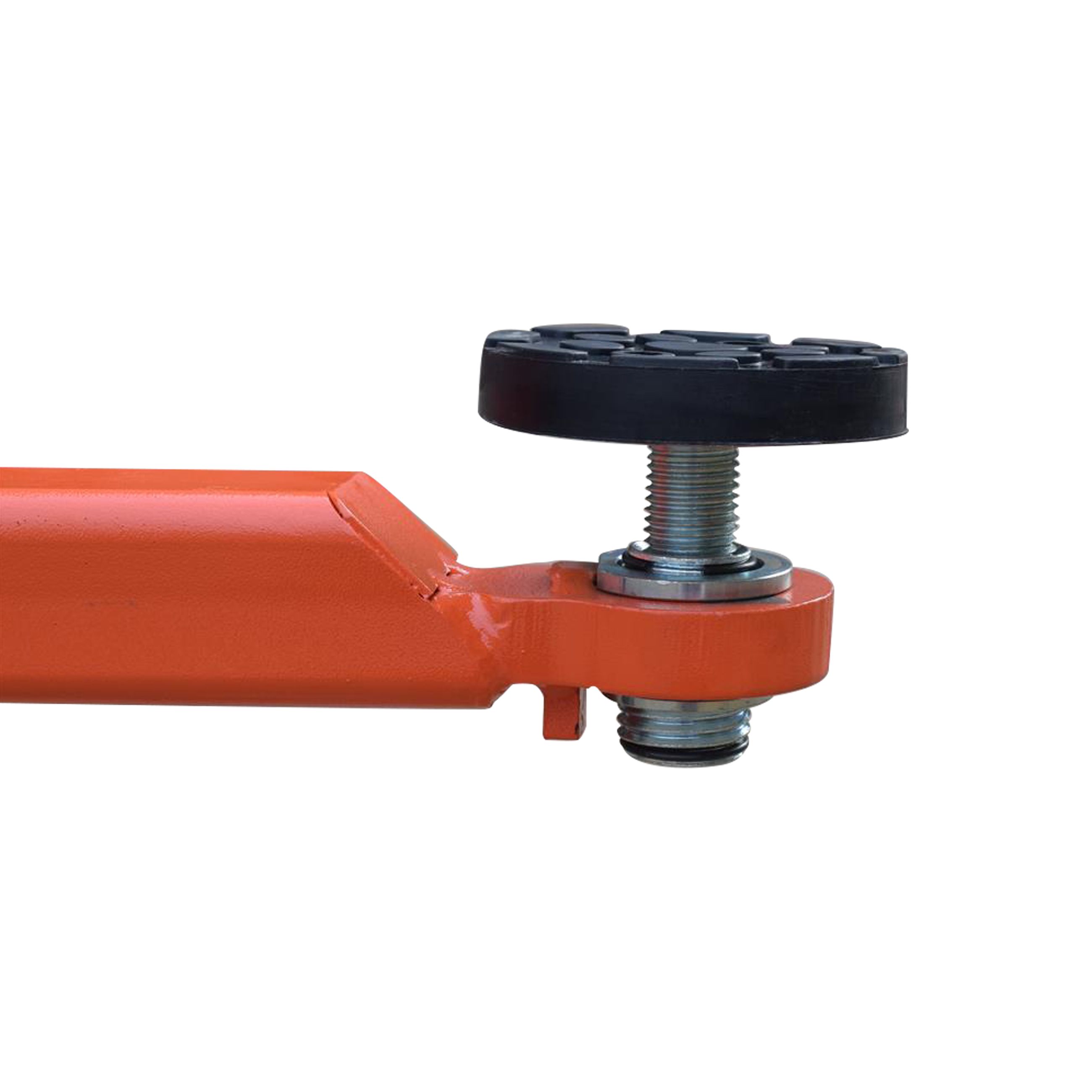

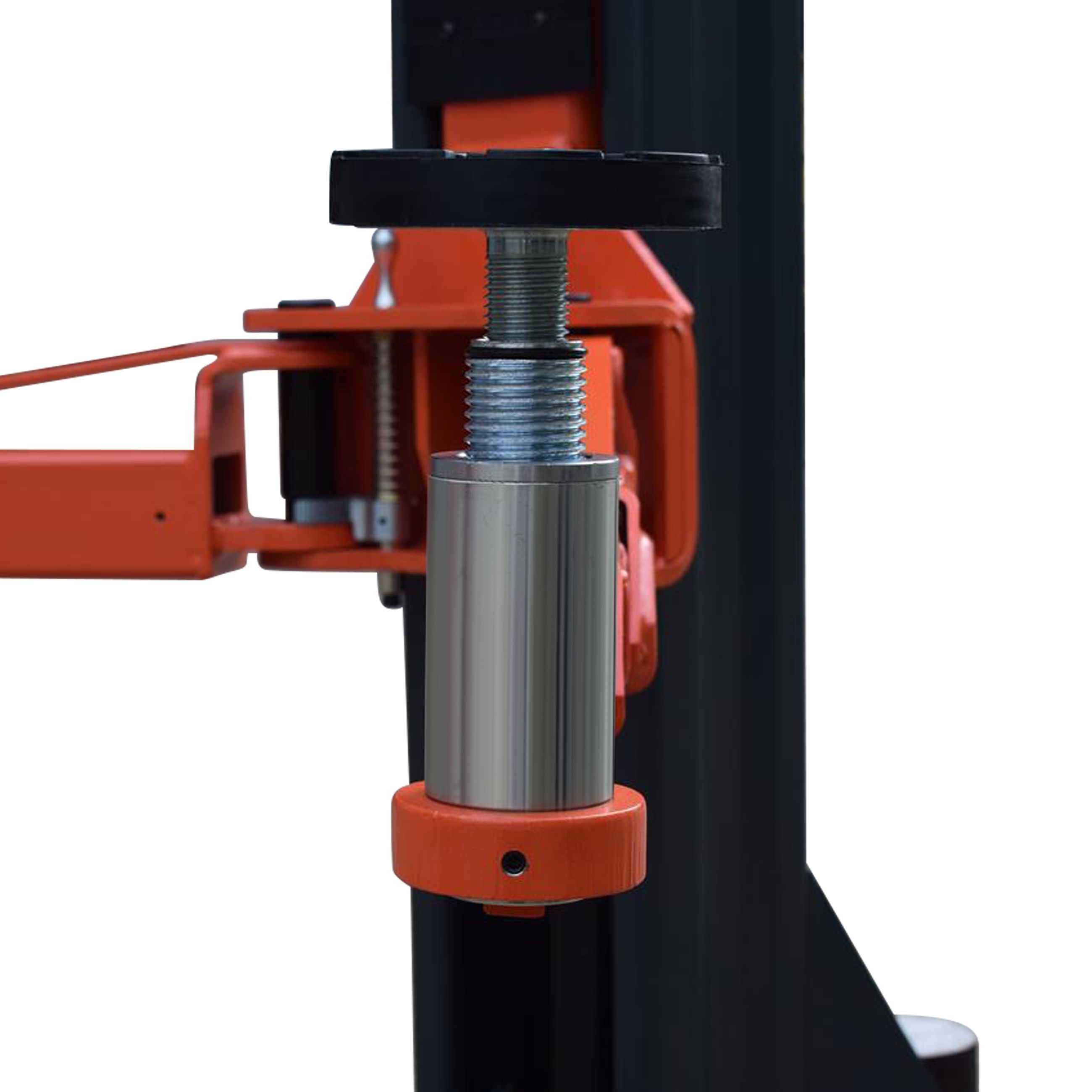

Clear floor overhead configuration4,500kg lifting capacitySingle point safety releaseClear floor design4 x three stage armsStackable adaptors 40mm, 60mm & 125mm5 years structure & 2 year hydraulics & 1 year electrical warranty
Certified to AS/NZS2550.9 standards

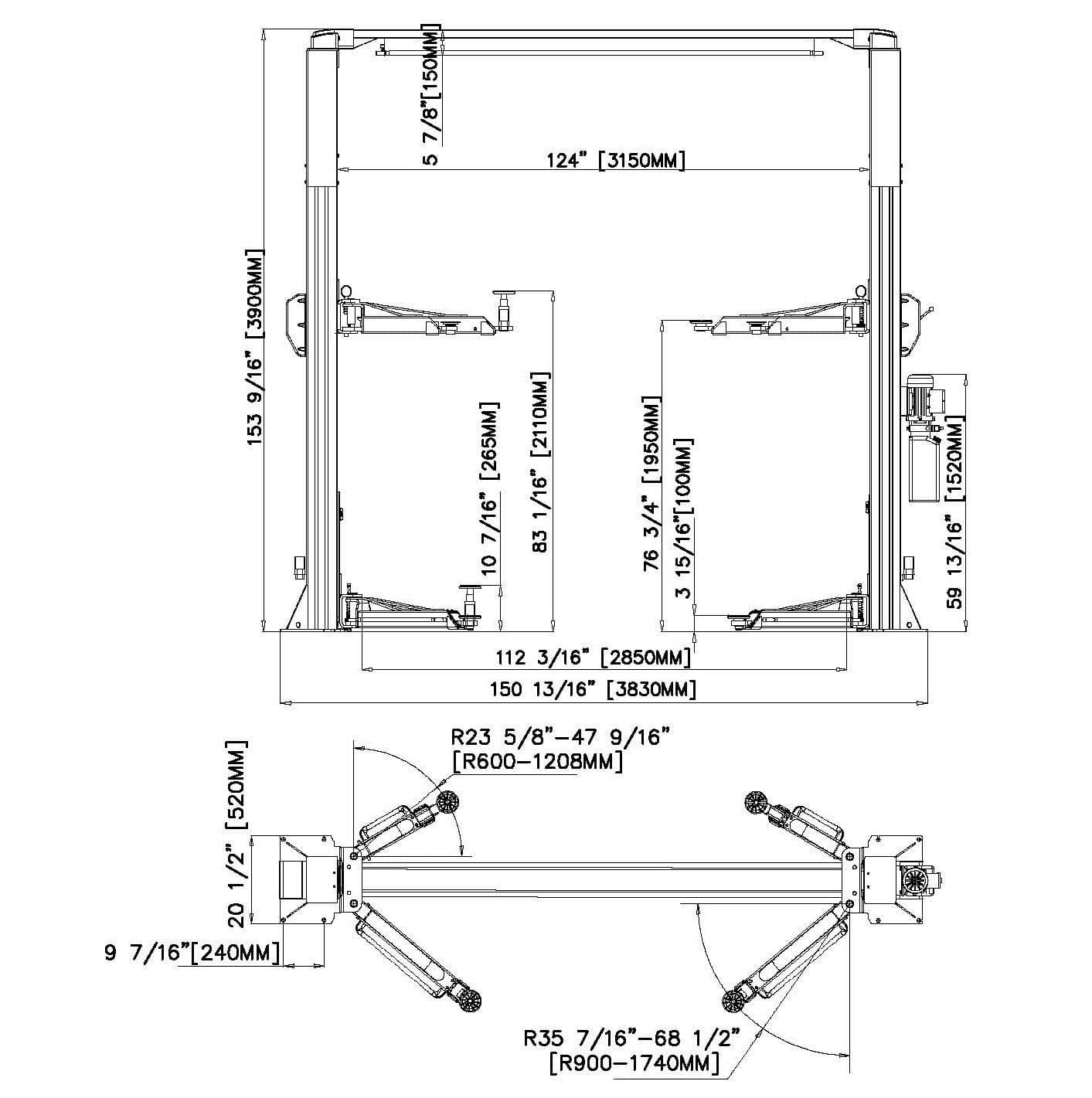

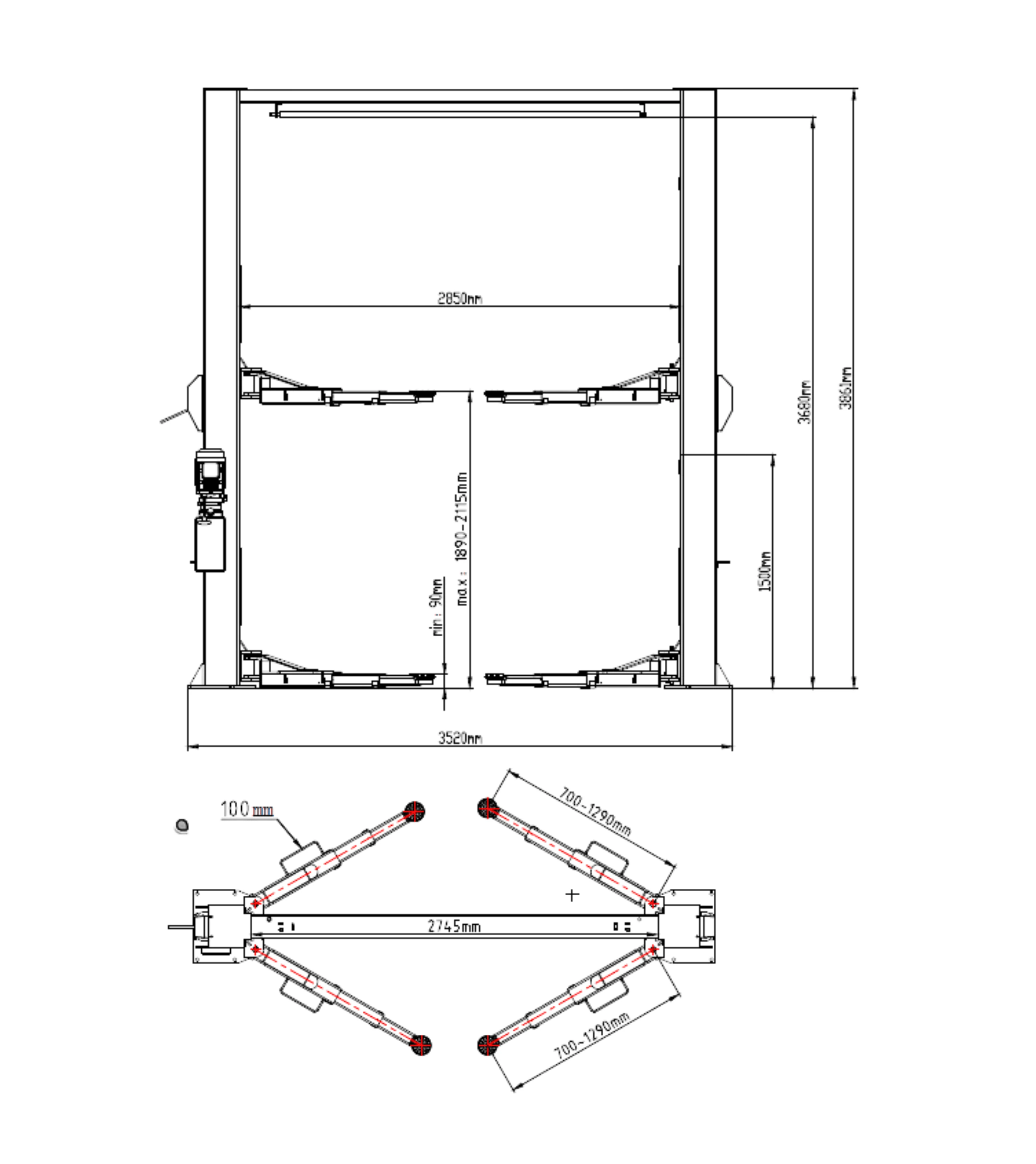

Specifications
- Lifting capacity: 4500kg
- Max lifting height: 2115mm
- Overall height: 3861mm
- Overall width: 3520mm
- Width bet. columns: 2850mm
- Drive through: 2560mm
- Min pad height: 90mm

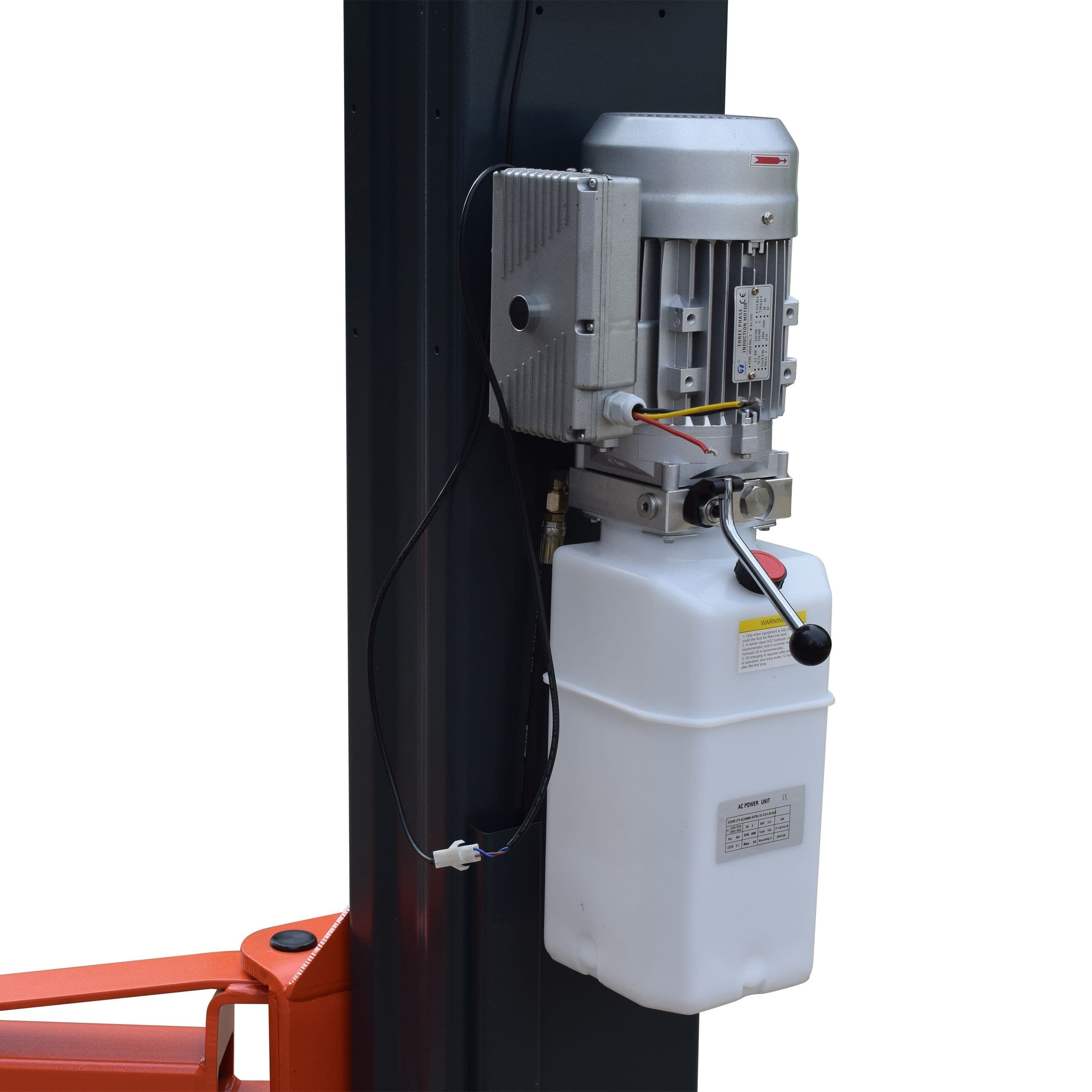

- Motor voltage: 240V (Optional 3 ph)
- Gross weight: 770kg
- Dimensions: 3910 x 510 x 770mm
